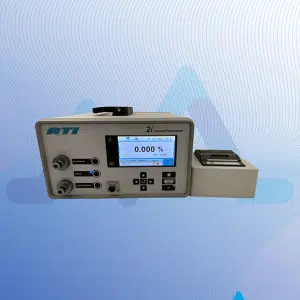

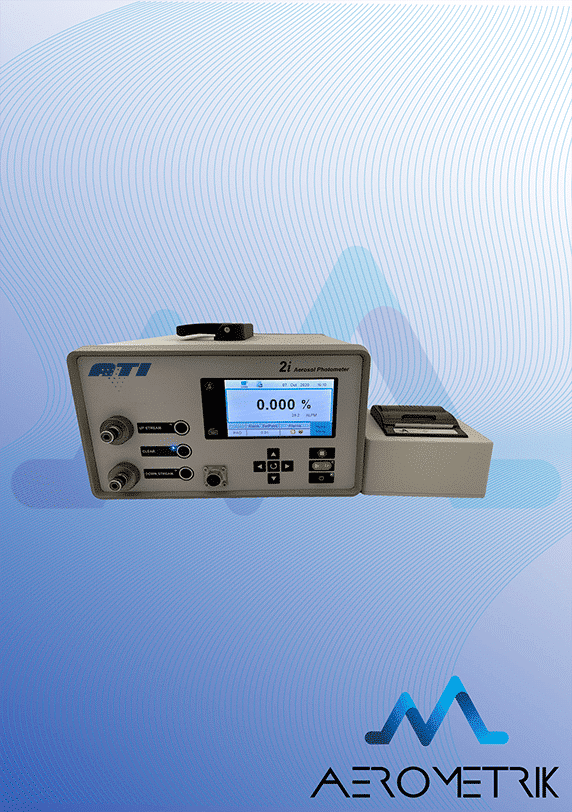

Photometer ATI Model TDA 2i
. Hepa Filter Testing ISO 14644-3.
. Lightweight, portable and rugged digital photometer
Large.
. 4.3″ LCD screen to display critical information.
. iProbe (optional) with 12 ft cable for hard to reach areas minimizes downtime.
. User settable aerosol noise suppression for more stable aerosol measurements.
. Printer (optional) available for reporting.
Product Specifications
Dimension (L x W x H): 25.7 cm x 33 cm x 15.2 cm (13 in. x 10.1 in. x 6 in.)
Weight: 8.6 kg (19 lb)
Power:
Output Voltage: 100 to 250 Volts AC, 50/60Hz automatic adjustment
Input Voltage: 0.5 amps @ 120V, 0.25 amps @ 240V
Auto Zero: Automatically establishes zero reading at startup
Alarm: User selectable audible, visual, and vibratory
alarms notify the user when the user defined set
point is exceeded
Flow Control: Pulse Width Modulation (PWM) control ensures
sampling rate of 1cfm (28.3 lpm) +/- 10% in all
applications
Reagent Settings: PAO-4, DOP, Ondina, PEG, Krydol, Corn Oil, Mineral Oil, Paraffin
Dynamic Range: 0.0001 mg/m3 to 120 mg/m3
Sensitivity: 1% of readings > 0.01% to 100%
Repeatability: 0.5% of readings > 0.01% to 100%
Light Source: Solid State, rated for life of instrument
Output: USB Connection
Reporting: Continuous, Summary, and Monitoring modes
Standards Compliance:
Industry: NSF 49, IEST, ISO 14644-3
Electrical & Safety: CE, FCC, EN 61010-1:2010, EN 61326-1:2006
Applications :
. Biosafety Cabinets & Fume Hoods
. Hospital operating theatres
. Nuclear Facilities
. HVAC qualification companies
. Filter Manufacturers
. Medical Facilities & Cleanrooms
Accessories
. Thermal Printer 2i photometer.
. Transport case.
. iProbe.
Services
. Equipment rental: available within 48 hours (depending availibilty). Full package including accessories, calibration certificate and consumable.
. Training session on site or in our office related to regulation, equipment use and data treatment .
. Calibration and metrological services are performed in our laboratory located at Betton (35).
