Diffuseur de gaz CLIMET CI-302 avec un compteur de particule

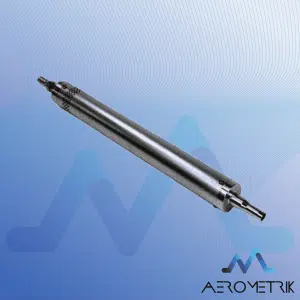

CLIMET Gas Diffuser Model CI-302

High Accuracy
High Reliability Quieter Operation Stainless Steel Design

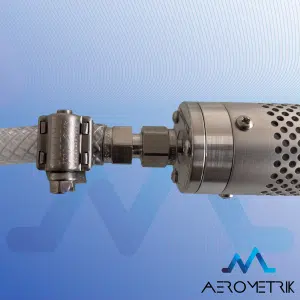

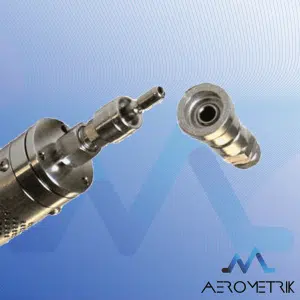

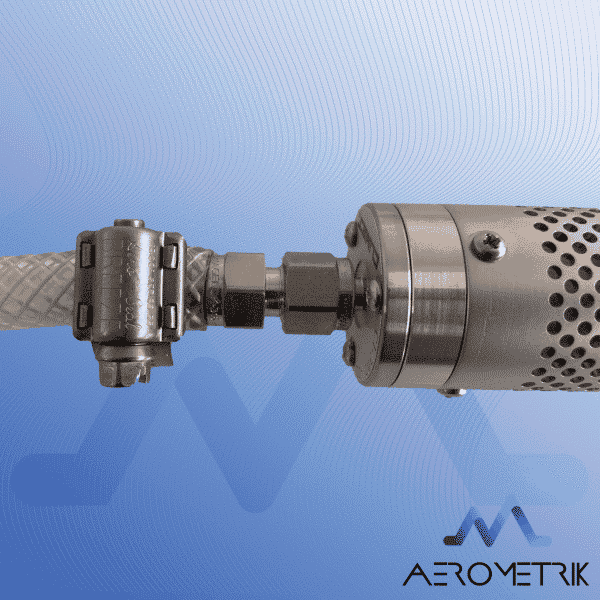

VCO Fitting
(Other fittings available upon request)

Stepped Outlet
(3/8 and 1/2 inch tubing)

Reduces Contamination Build-up

Pressure Ranges from 5 Psi up to 150 Psi

Download product sheet

SKU: 29cfd79dd49b-1 Categories: Cleanroom qualifications, Climet, Filter integrity test, Particle counters, Particle counts, Portable airborne particle counter, Sampling in gases

Need information

Share Product

Click here

Specifications

Flow rates: 1 CFM (28.3 LPM), 50 LPM, 75 LPM.
Compatible gases: compressed air and nitrogen
Decontamination: standard H2O2 decontamination
Operating temperature: 0-36°C.
Non-condensing relative humidity: 10-90%.
Dimensions : 40,6 cm (Length) x 3.5cm (Diameter).
Weight : 0,453 kg

Models :

CI-302-20: for gas systems from 7.5 to 10 Bar
– All collectors
– All particle counters
CI-302-21 : for gas networks from 4.1 to 10 Bar
– All collectors
– All particle counters
CI-302-22 : for gas networks from 2.4 to 10 Bar
– All manifolds
– All particle counters
CI-302-24 : for gas networks from 0.9 to 2.4 Bar
– All manifolds
– All particle counters

Accessories

The CI-302 includes the following accessories:

1 meter of Bev a line (3/8” or 1/2”),
A quick connect adapter,
A user manual.

Services

. Rental: the equipment is made available within 48 hours (depending on availability). Equipment delivered complete with accessories, calibration certificate and instructions.
