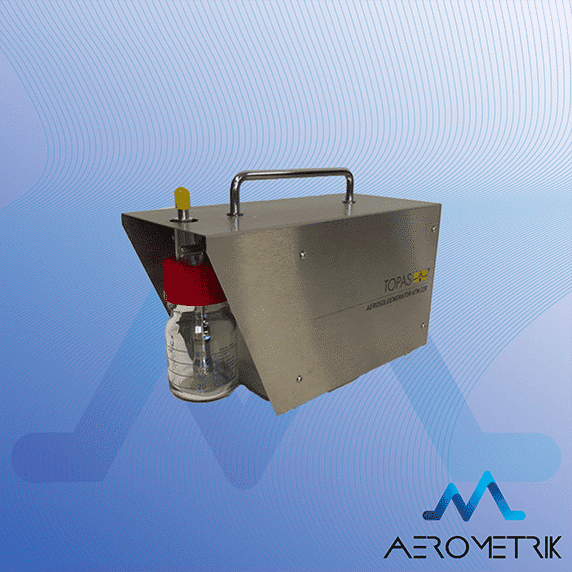

Atomizer Aerosol Generator TOPAS Model ATM 228
Air flow rate: 20 … 250 l/h
Mass flow rate: 0 … 1,4 g/h
continuously adjustable
Particle production rate:
4,0×1006 … 1,4×1010 #/s
continuously adjustable
Aerosol substances:
DEHS, PAO (Emery 3004), paraffin oil, salt solutions, suspensions (PSL, A1)
The ATM 228 is a further development of the highly sucsessful ATM 226 aerosol generator and fully complies with the requirements of VDI 3491-2.
According to ISO 14644-3 this device can be used to test the filter integrity of HEPA and ULPA filters as well as measuring the recovery time. It can also be used in the test of very small filter cross sections where very low aerosol quantities are required. The ATM 228 has been developed for particularly stable aerosol generation at low nozzle volume flows or nozzle pressures.
The advantage of the generator lies in a very wide adjustable concentration range with highest aerosol stability. Thus an optical cleanroom particle counter can be operated directly on the ATM228 without dilution system below the coincidence limit.
Specifications
Air flow rate: 20 … 250 l/h
Mass flow rate: 0 … 1,4 g/h
continuously adjustable
Particle production rate:
4,0×1006 … 1,4×1010 #/s
continuously adjustable
Aerosol substances:
DEHS, PAO (Emery 3004), paraffin oil, salt solutions, suspensions (PSL, A1)
Substance capacity: 20 … 80 ml
Non-stop operation: > 44 h
Non-stop operation battery : ≤ 10 h (optional)
Counterpressure: max. 40 kPa
Aerosol outlet: hose fitting ∅ 8 mm
Power supply: 100 … 240 VAC, 12 VDC
Air supply: compressor
Dimensions:
(w x h x d): 300 x 120 x 195 mm
Weight: 3,9 kg
Accessories
. Carry case for one dilution system DIL and one aerosol generator.
