VelociCalc Anemometers are ideal tools for making face velocity measurements in fume hoods and spray booths or for performing indoor air quality and ventilation system checks.
Show more
The VelociCalc TSI line of anemometers offers single or multiple capabilities to simultaneously measure and record multiple ventilation parameters using a single probe equipped with multiple sensors.
Depending on the model, it is possible to measure air velocity and temperature, calculate flow rate and perform statistical calculations. Some models also allow for humidity and pressure measurements, and dew point and wet bulb temperature calculations.
Equipped with a 101.6 cm telescopic probe, the straight or angled version allows measurements in hard-to-reach places.
The 8030 balometer is a versatile air balancing instrument, primarily used to take direct air volume readings at diffusers and grilles.
The AccuBalance® Air Capture Hood 8380 is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles. It features a detachable micromanometer which can be used with optional probes for increased flexibility in multiple measurement applications.
Less
-

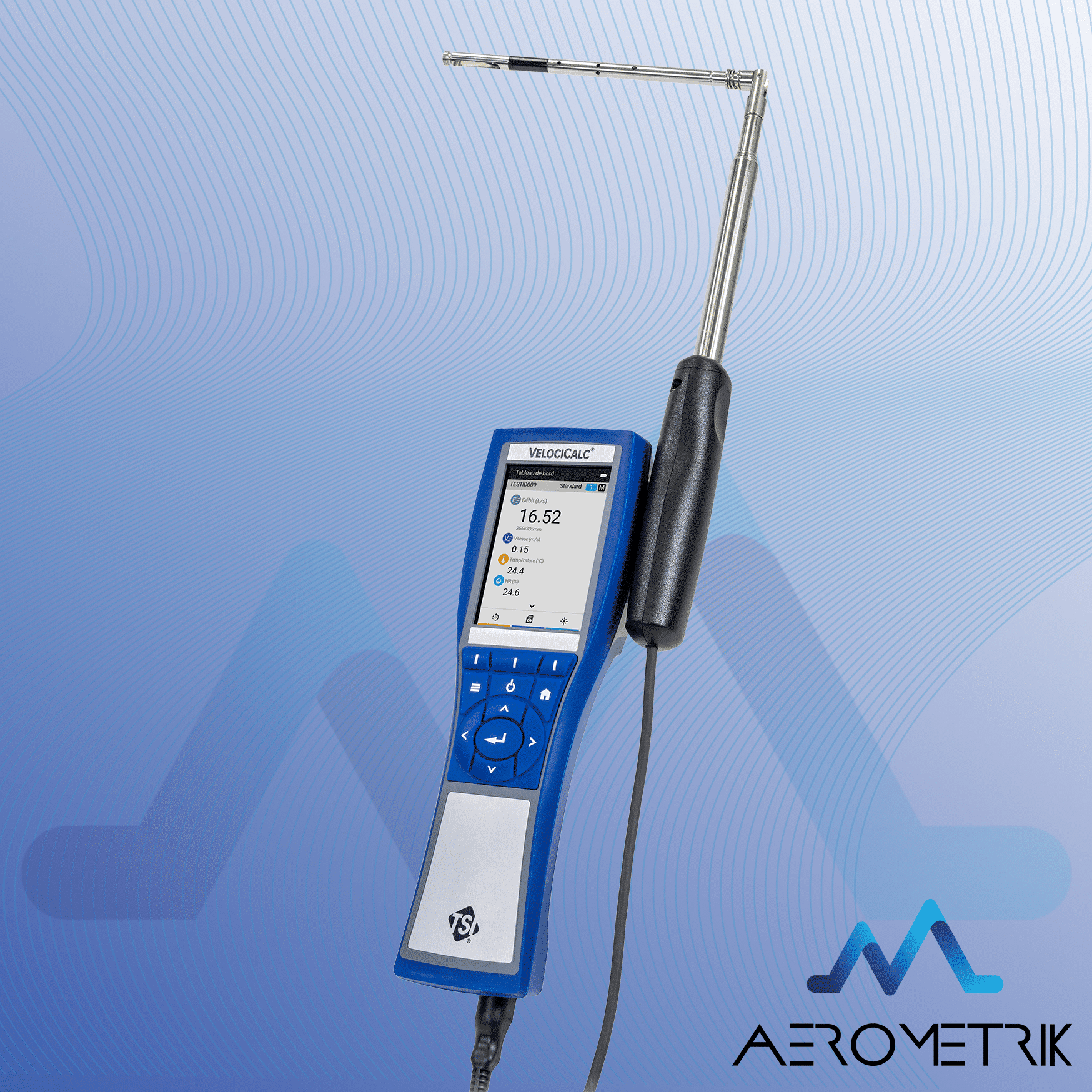

VelociCalc Multi-Function Ventilation Meter TSI 9600
. Large, high-resolution color display
. Intuitive menu structure allows for ease of use and setup
. Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
. Input for one K-alloy thermocouple
. User-customizable soft keys for quick access to common functions
. Calculate the percentage of outdoor air with IAQ probe
. Integrated magnets for hands-free operation
. Supports multiple languages
. Air density compensation with on board barometric pressure sensor and temperature input
. Print data from instrument with optional USB portable printer -

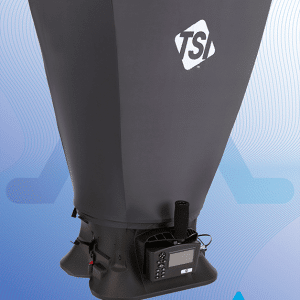

Accubalance Air Capture Hood TSI Model 8380
. Accurately measures pressure, velocity and flow to help you meet industry standards
. Auto-zeroingpressure sensor reduces user-steps and saves time
. Automatic density correction increases reading accuracy
. Intuitive menu structure allows for ease of use and setup
. Large graphic display with backlight offers easy-to-use interface
– Displays up to five measurements simultaneously
– On-screen messages and instructions
– Programmed for multiple languages
. Integrated Log-Tchebycheff duct traverse application simplifies calculations
. Bluetooth communications for transferring data or remote polling
. Includes downloading software with USB cable
. Accommodates optional pitot, air flow (straight pitot),
temperature/relative humidity, velocity matrix, or thermoanemometer probes for use in multiple applications -
VelociCalc Multi-Function Ventilation Meter TSI 9565
. Straight Air Velocity Probe 964 measure air velocity, temperature and relative humidity
. Includes differential pressure sensor
. Best-in-class air velocity accuracy
. Optional “smart” plug-in probes, including VOC, CO2, and rotating vane probes
. Accommodates up to two K-alloy thermocouples
. Large graphic display
. Displays up to five measurements simultaneously
. On-screen messages and instructions
. Program for local language
. Intuitive menu structure allows for ease of use and setup
. Multiple data logging formats
. Bluetooth communications for transferring data or remote polling
. Includes TrakPro™ and LogDat2™ downloading software with USB cable -

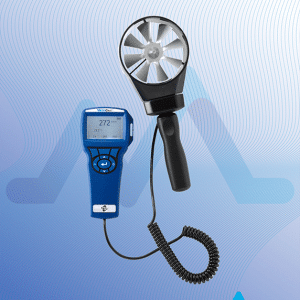

VelociCalc Rotating Vane Anemometer TSI 5725
. Reversible 4-inch (100 mm) head to read supply and exhaust flows
. Calculates volumetric flow rate when user inputs duct shape and size, or area
. Sampling function records multiple point measurements
. Automatic averaging of air velocity
. Simultaneously displays velocity and temperature
. Sweep mode for one overall measurement
. Optional 36-inch telescopic probe available
. Compatible with optional Aircone flow hoods
. Logs 12,700+ samples with a time and date stamp
. Recall, review, store data -
Air Velocity Meters VELOCICALC TSI 9545
. Simultaneously measure temperature and velocity
. Displays up to three measurements simultaneously
. Calculates volumetric flow and actual/standard velocity
. Data log 12,700+ samples and 100 test IDs
. LogDat2TM downloading software included
. Articulated probe versions available (9545-A)
. Measures humidity -

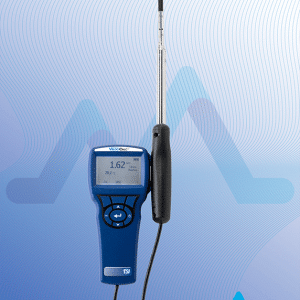

Air Velocity Meters VELOCICALC TSI 9535
. Simultaneously measure temperature and velocity
. Displays up to three measurements simultaneously
. Calculates volumetric flow and actual/standard velocity
. Data log 12,700+ samples and 100 test IDs
. LogDat2TM downloading software included
. Articulated probe versions available (9535-A) -

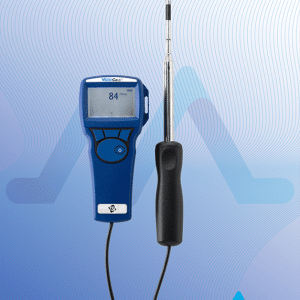

Air Velocity Meters VELOCICALC TSI Model 9515
. The Model 9515 is an economical choice for a digital air velocity meter, without compromising accuracy or precision.
. Professionals find them to be the ideal tool for face velocity measurements in fume hoods, spray booths, or ventilation system checks.
